Anycubic provided the Kobra S1 Max Combo used in this project.
I wanted to 3D print a full-size Stormtrooper helmet. Technically, I succeeded. Unfortunately, the first one was sized for someone built like an industrial refrigerator.
That is what happens when you open a helmet model in the slicer, notice all the unused space, and decide to fill the printer instead of measuring your head.
The good news? The Anycubic Kobra S1 Max printed the main helmet shell in one piece. The better news? My second attempt actually fits.
Here is what this project taught me about printing cosplay helmets, choosing between multicolor printing and separate parts, and remembering that build volume is not a sizing guide.
Why a Bigger Printer Helps With Cosplay Helmets
A large helmet can become a much bigger assembly project when it needs to be divided into sections. Each joint adds another place to align, glue, and finish.
For this build, I wanted the main white shell to come off the printer as one piece. That meant fewer seams to deal with and less assembly before working on the details.
The Kobra S1 Max has a 350 × 350 × 350 mm build volume. That gives it room for many cosplay helmet shells, although the actual fit depends on the model, its orientation, and the size needed for the person wearing it. The printer is also a fully enclosed CoreXY machine. See Anycubic’s specifications.
If you want the unboxing and setup, start with my Kobra S1 Max Combo first look. This project was the next step: putting that extra space to work.
My First Helmet Was a Little Too Full-Size
When I placed the helmet in the slicer, there was still room around it. Instead of measuring my head like a reasonable maker, I enlarged the model until it used almost the entire build volume.
My reasoning was simple: bigger printer, bigger helmet.
My head was never consulted.
The result was a helmet so oversized that I could barely see or turn my head while wearing it. I had essentially printed Dark Helmet’s carry-on suitcase.
The printer had followed my instructions. The instructions were ridiculous.
That distinction matters when you are evaluating a project like this. Printing a large shell successfully and printing a wearable helmet are two different goals. My first attempt accomplished one of them.
The Second Attempt: Measure First, Then Scale
For the second helmet, I tried something revolutionary: actually measuring.

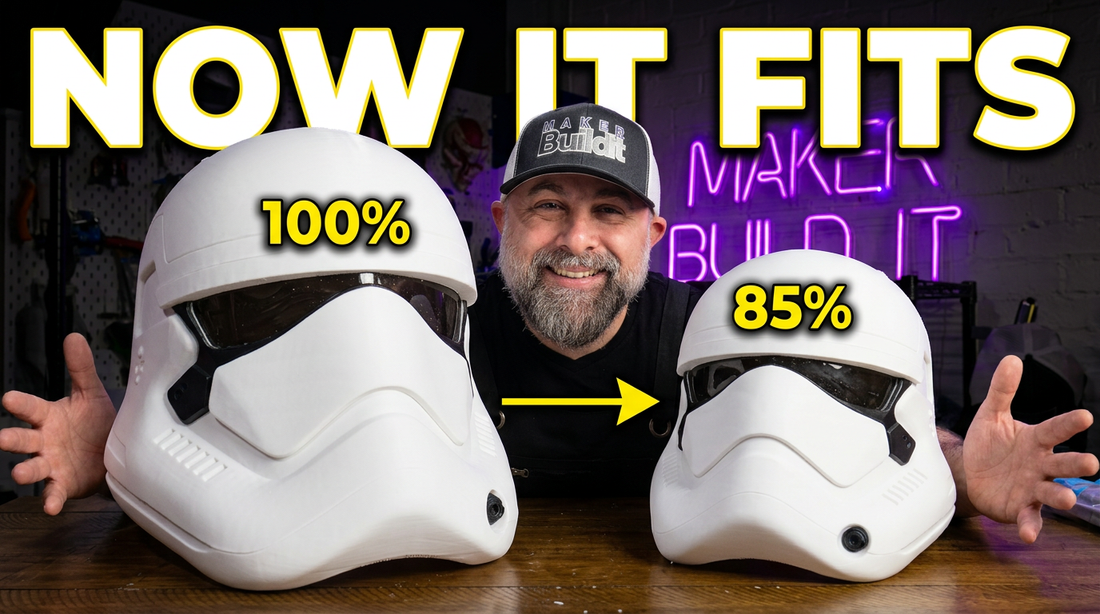

I measured my head, left some room for padding, and scaled this model to 85%. That version fit, and I could look around and see through the visor.
That percentage worked for this particular file and my head. It is not a universal setting for Stormtrooper helmets. Another model can have completely different dimensions at 100% scale.
Before committing to a full helmet, check the inside dimensions and make sure the opening will pass over your head. Leave room for the padding you plan to add, too.
One useful approach is to slice and print a thin section of the helmet around a critical fit area. That gives you a physical fit check before committing to the whole shell. Choose the section carefully: one ring cannot confirm every dimension of the finished helmet.
The goal is to find sizing problems while they are still small prints.
Multicolor Printing or Separate Detail Pieces?
A Stormtrooper helmet does not need a huge color palette. White and black do most of the work. Apparently, the Empire spent the rest of its color budget on lightsabers.
The Kobra S1 Max Combo includes an ACE 2 Pro for four-color printing. Anycubic lists expansion to 16 colors with additional units and the required hubs, plus filament drying up to 65°C while printing. Manufacturer details.
That gives you the option to print contrasting details directly into the model, provided the file is prepared for it. Vents and other accents could become part of the main print rather than separate pieces to attach afterward.
For my correctly sized helmet, I printed the white main shell and black detail pieces separately to save filament. The shell still benefited from the larger build volume, even though I chose not to combine every color into one print.
There is a tradeoff either way. Integrated colors can reduce assembly, while separate pieces can reduce the need for repeated filament changes. Look at the sliced print before deciding which approach makes sense for your model.
The Visor and Padding Still Need Their Own Plan
Printing the shell in one piece does not finish the entire helmet.
The visor needs to be see-through, and the interior needs enough room for a comfortable fit. In this build, I used vinyl for the visor and planned to add padding. Those are separate parts of the project, with their own material and fit decisions.
The corrected helmet let me see through the visor and move my head. That was a much more useful result than simply having the largest possible Stormtrooper helmet in the room.
If you are exploring other materials for wearable projects, take a look at my foaming TPU Starcosplay test. This helmet shell was printed in PLA.
Does a Bigger Printer Make Better Cosplay Props?
For this project, the extra build volume let me print the main helmet shell in one piece and avoid assembling it from several sections. Multicolor capability also gives me more options for incorporating details into future prints.
It still cannot decide whether the model fits my head.
I now have one wearable Stormtrooper helmet and one possible emergency shelter for a small family. Next time, I will start with the measuring tape.
What cosplay prop should I print next?
Measure twice. Print once. And keep on making.
